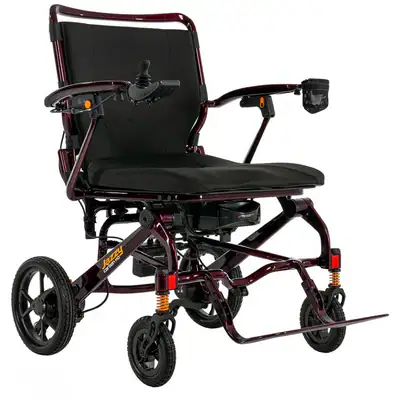

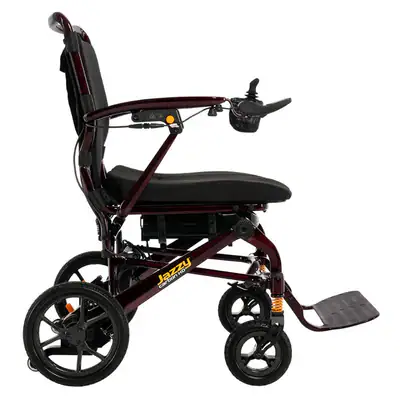

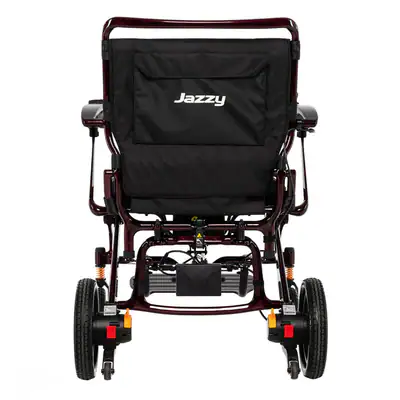

Pride Mobility Jazzy Carbon HD Power Wheelchair

The Jazzy® Carbon HD is a heavy-duty travel power wheelchair that weighs just 14.6 kg without the battery, yet offers a 181 kg weight capacity thanks to its durable carbon fibre frame. It folds and locks into position in seconds, making it easy to transport, while a padded seat back, removable cushion, and extra-wide foot platform keep you comfortable throughout the day.

Key Features

• Unit weighs just 14.6 kg without the battery
• 181 kg weight capacity
• Durable carbon fibre frame for strength without added bulk
• Front and rear suspension for a smoother ride over varied terrain
• Top speed of up to 6 km/h
• Battery range of up to 20 km per charge

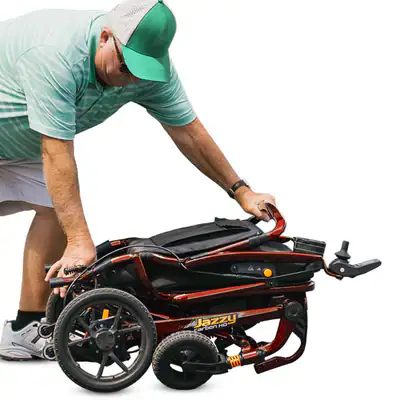

• Easy fold design that locks securely into folded position in seconds
• Flip-up lightweight carbon fibre arms
• Padded seat back with removable cushion
• Extra-wide adjustable foot platform (43.8 cm W x 15 cm D)
• 20 Ah lithium battery included as standard
• Storage pocket on back of seat
• Quick-disconnect LCD joystick with digital display, USB-C port and puddle light
• Mesh cup holder, cushion and adjustable lap belt included as standard
• Available in Black Cherry or Night Sky

Specifications

• Product type: Heavy-duty travel power wheelchair
• Model: Jazzy® Carbon HD
• Weight capacity: 181 kg
• Maximum speed: Up to 6 km/h
• Ground clearance: 2.5 cm at motor
• Turning radius: 92.5 cm
• Overall length: 93.5 cm
• Overall width: 67.1 cm
• Suspension: Full front and rear suspension
• Front wheels: 16.5 cm
• Rear wheels: 26.9 cm
• Range per charge: Up to 20 km
• Product weight without batteries: 14.6 kg
• Standard seating: 50.8 cm x 50.8 cm dimensions; padded seat back and solid seat pan with removable cushion
• Folded dimensions: 79.5 cm L x 67.1 cm W x 33 cm H
• Drivetrain/motor output: 24V 250W brushless motors
• Braking system: Regenerative and electromechanical
• Battery requirements: Lithium battery box, size 20 Ah
• Battery weight: 3.4 kg
• Battery charger: 2 Amp
• HCPCS code: K0899 Power Mobility Device, not coded by DME PDAC
• Warranty: Frame 5-year; Electronics 1-year limited; Drivetrain 1-year limited; Battery 1-year limited
• Available colours: Black Cherry, Night Sky
